60226P

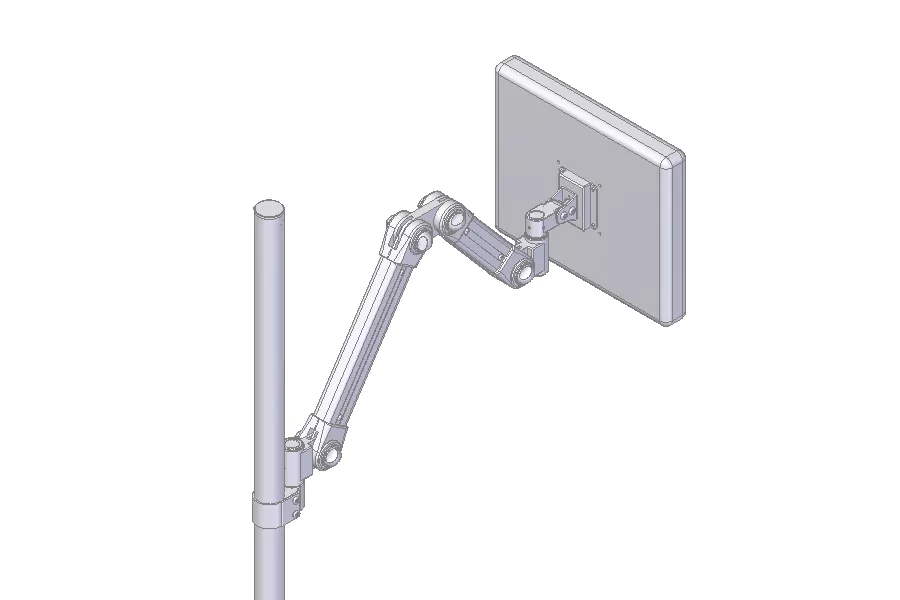

LCD Foldable Arm (Pole Mount)
This pole mount LCD foldable arm is designed to be lightweight, of high quality appearance and competitively priced. The design incorporates display tilt and rotation adjustment. Ruggedly constructed from light weight aluminum alloy arm parts with quality surface coating and provision for internal housing of monitor cabling.
- Arm side to side rotation 180° and display side to side rotation 360°.
- 90° portrait/landscape pivot oration.
- Counter force balanced monitor tilt up and down.
- Conform to the VESA 75mm(standard) or VESA 100mm(optional).
- Arm housing for organizing cable.
- Durable aluminum alloy pole clamps available for 1.5″ or 2″ pole.
Range Of Motion :
90° portrait landscape LCD landscape
LCD rotation 180°
LCD tilt angle adjustment
Arm rotation 360°
Back arm height adjustment range 90°
Forearm height adjustment range approx 45°
Configure Options
Pivot head
VESA plate
Adjustble Arm
Pole Mount
Optional
