60222GH

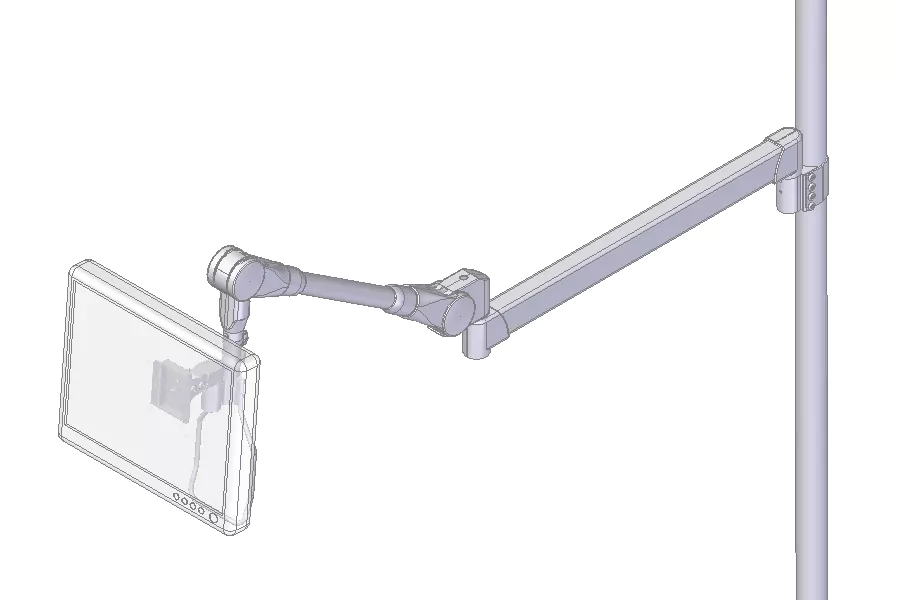

Ultra-Long LCD Two Arm System ((Pole Mount)

This two arm system is designed for circumstances need ultra-long arm reach. The design incorporates arm lock for locking monitor in desired position and for loading heavy weight monitor. The “lift & lock” allows easy one-handed operation by lifting handle for opening lock and release handle for locking the adjustable arm. Ruggedly constructed steel arm parts with quality surface coating and provision for internal housing of monitor cabling.
  • Patented counter force balance lift design incorporating knob-less, quiet and smooth dampened operation. Enhances user comfort and convenience through effortless adjustment of the screen position for optimum viewing angle.
  • 45° up and 45° down adjustment of the arm allows adjustment for the most comfortable viewing height. minimizing user fatigue.
  • Two arms side to side rotation and 180° display side to side rotation.
  • 90° portrait/landscape pivot rotation.
  • Loading weight for max. 10kgs (22 lbs).
  • Counter force balanced monitor tilt 87° up or 25° down from vertical plane.
  • Durable steel heavy duty wall mount bracket and pole mount clamp are available.
  • Conform to the VESA 75mm(standard) or 100mm(optional).

Range Of Motion :

90° portrait landscape
180° forearm side to side rotation
180° Monitor side to side rotation
Adjustable arm tilt angle adjustment 45° Up 45° Down
Arm lift and lock height adjustment
Monitor tilt adjustment
Plastic clip for cabling

Configure Options

Pivot head

VESA plate

Adjustble Arm

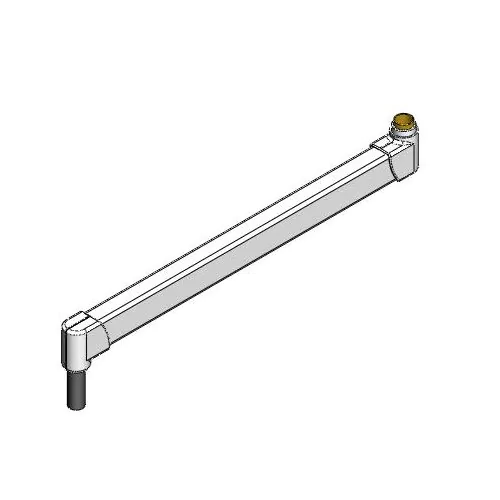

Extension/Swing Arm 1

Pole Mount

Optional
